Semi-Automatic Embosser Label Printing Marking Machine, Different Character Wheels Optional 2/2.5/3/4/5/6, Metal Nameplate Stamping Machine Dog Tag Printer,2mm

1PC Character board (Character board size font height: 2mm 3mm 4mm 5mm 6mm can be.1PC Workpiece fixture 2PCS Hexagonal spanner 1PC spareExplanationAlloy steel dials that have been heat-treated with high-frequency quenching may be imprinted with letters or numbers to a certain depth (0.1~0.3mm) when subjected to external forces (e.g. pressed manually or struck with a rubber mallet). On metal labels.Turn the character plate to select the character, pull the pitch giving handle, then press the rubber buffer, and the character on the nameplate is complete. And again, the next. Turn the head handwheel to the next line.Characters of different heights require changing the character plate.Technical dataMaterial of printing plate: iron, aluminium, copper, stainless steel, plastic products.Maximum label print size: 195mm x 135mmCharacter plate numbers included:Upper case letters: ABCDEFGHIJKLMNOPQRST UV WXYZArabic numerals: 1 2 3 4 5 6 7 8 9 0Simple symbols: x / - (special symbols can be customised)Packing list1 set of manual marking machineTransmissionWith 1PC manual

• 【Working principle】The high-frequency quenching and heat-treated alloy steel character wheel will engrave letters or numbers with a certain depth (0.1~0.3mm deep) on the metal plate under the action of external force (hand pressing or rubber hammer).
• 【Parameters】Thickness of character wheel: 6mm; Diameter of wheel: 80mm; Characters: 40pcs; 26 uppercase letters on wheel: ABCDEFGHIJKLMNOPQRSTUVWXYZ; 10 numbers on wheel; 4 common symbols: ·×／一
• 【How to choose the character wheel】The size of the wheel means the height of the printed character, such as the character height printed by No.3 character wheel is 3mm.

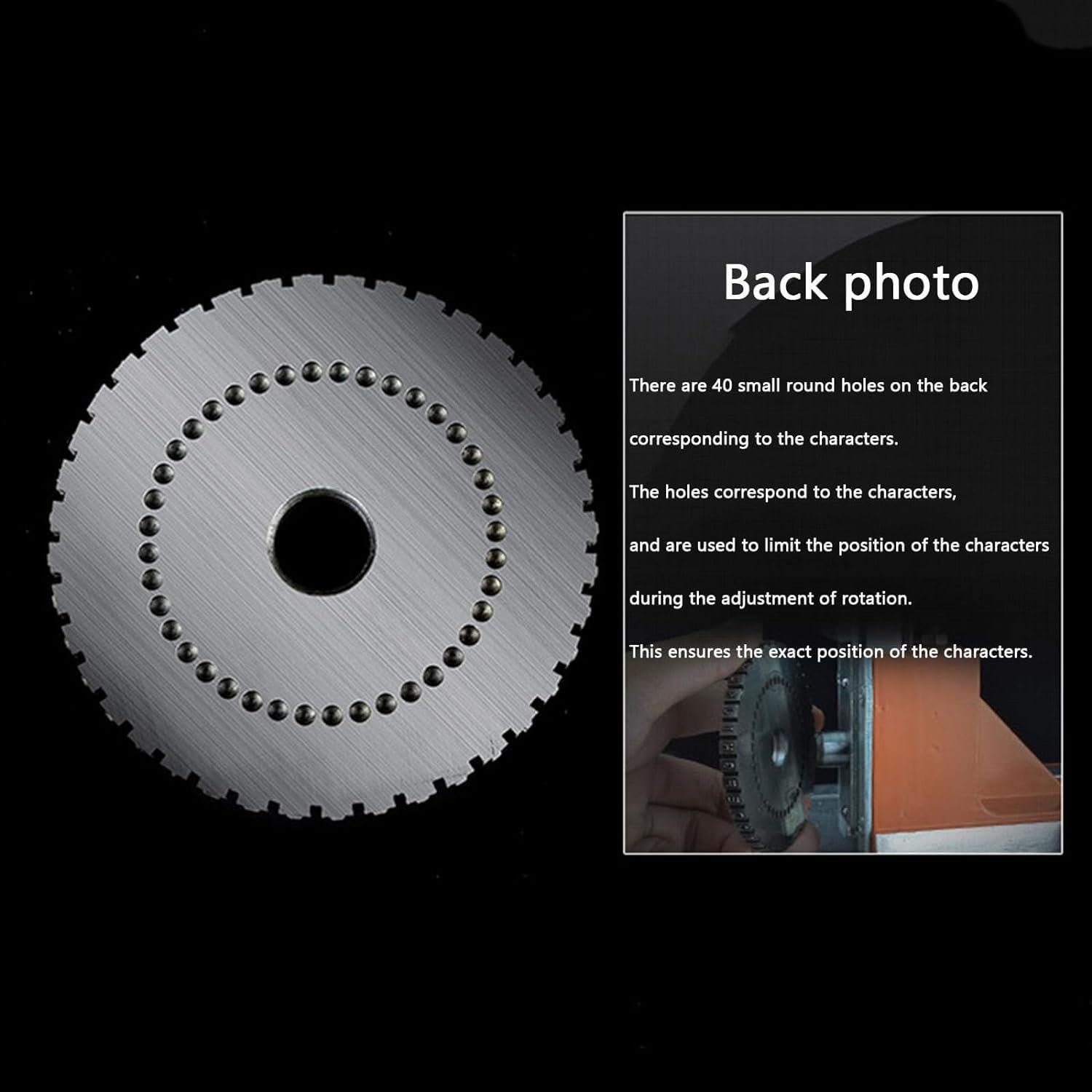

• 【Character wheel】This nameplate stamping machine comes with one character wheel. The wheel is made of die steel and the hardness is 5 times that of ordinary steel. Each wheel includes 40 characters: 10 numbers, 26 uppercase letters, 4 common symbols(note: no lowercase letters).
• 【Usage】Changed parameters engraved on the metal plate: such as specific model, date, batch number, serial number, serial number, etc. Apply for all kinds of aluminum, copper, stainless steel, plastic nameplates on machinery, electromechanical, water pumps, valves, automobiles and motorcycles, and electrical appliances.
